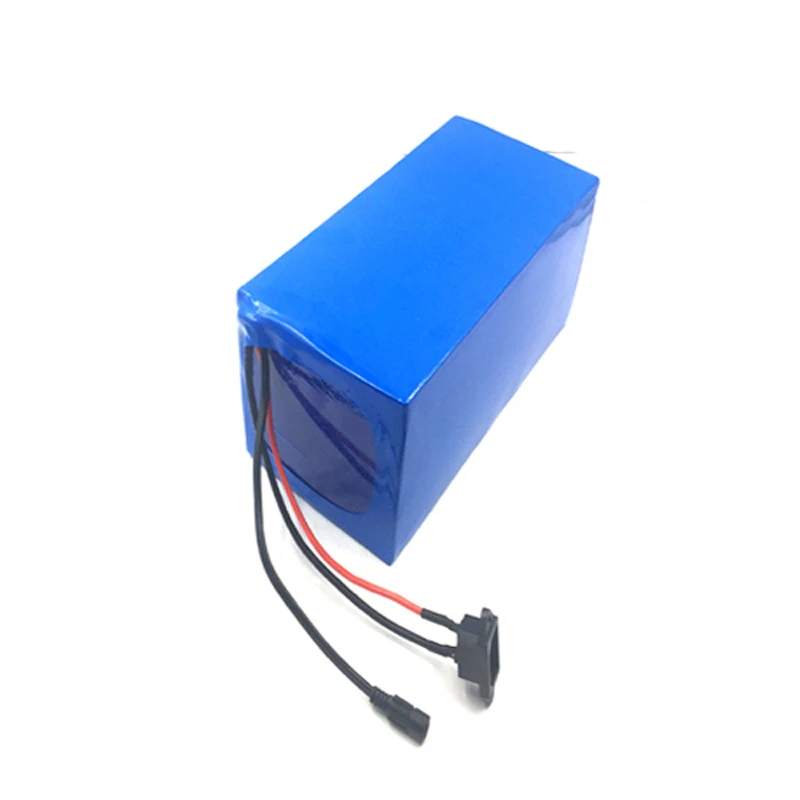

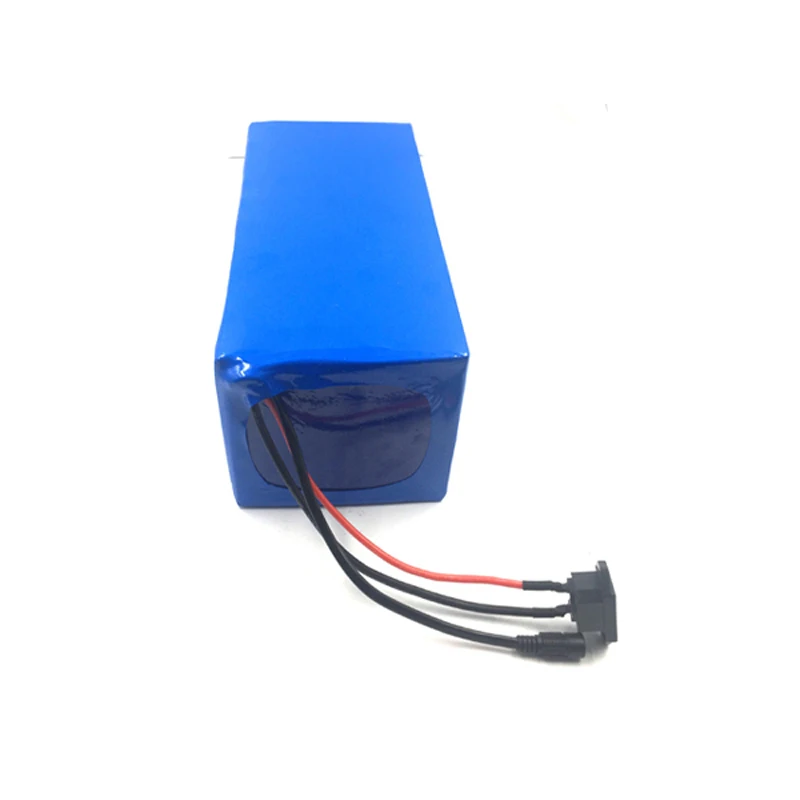

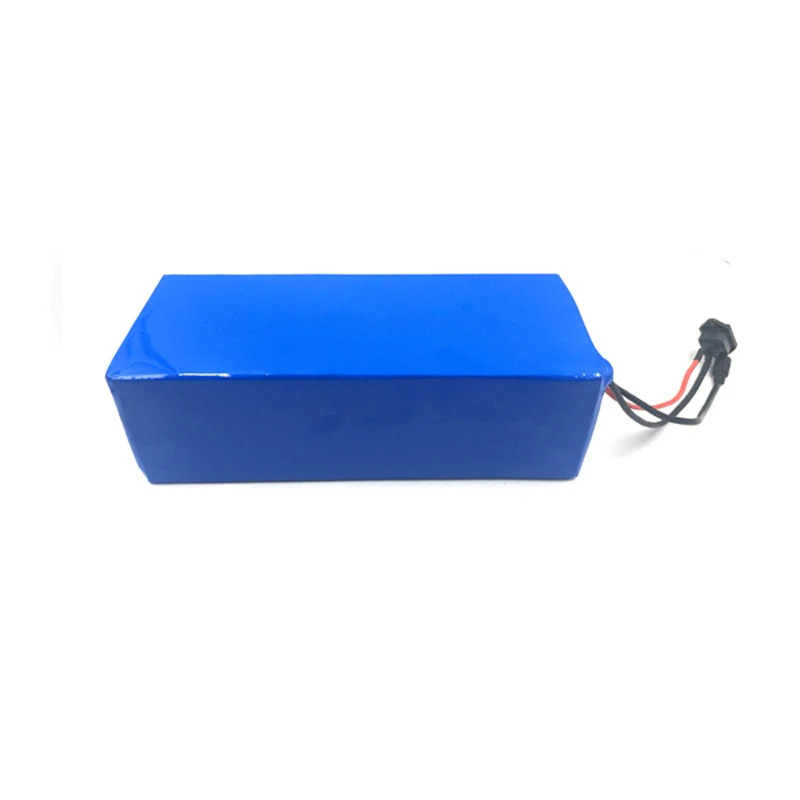

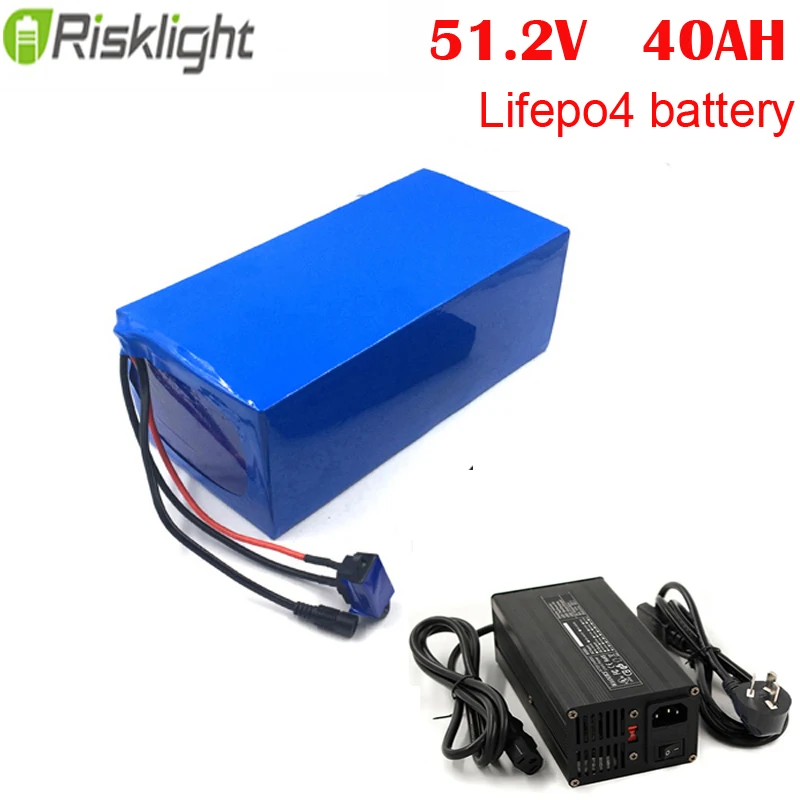

Battery Model 51.240 Voltage 51.2V Capacity: 40AH Type: 3.2v 3C 26650 cell Source Resistance 40 Charge Way of charge CC/CV Standard charge Current 2A Max charge current 5A Charge Cut-off Voltage 58.40V CellOvercharge protection Voltage 4.2V/CELL Discharge Continouns Discharge Current 40Amp Peak Discharge Current 120Amp Cell Overdischarge Voltage 2.5v/cell Discharge Cut-off Voltage 40.0v Cycle Life 1000 times Safety test No firs ,No explosion Overcharge Safety Test Crush Safety test Needling safety test 130 C high Temperature safety test Weight 16kg Size 150*235*270MM(Canbe customized) Fit moto power Less 2200w Working Temperature 0C—45C -20-C—65C Retention of charge >95% Certificate CE,UL,ROSH,UN38.3,MSDS Application E-bike,E-motorcycle,E-scooter Warranty One year Explore the Benefits of Lithium Compared to lead-acid and other lithium batteries, lithium iron phosphate batteries offer significant advantages, including improved discharge and charge efficiency, longer life span and the ability to deep cycle while maintaining power. LiFePO4 batteries often come with a higher price tag, but a much better cost over life of the product. No maintenance and super long life makes them a worthwhile investment and a smart long-term solution. Lithium is Long-Lasting Lifepo4lithium batteries provide up to 10 times longer life than lead-acid batteries, and they still provide 80% of rated capacity after 2,000 cycles. Most lithium-ion batteries last five years or more. The average lead-acid battery lasts just two years. Lead-acid batteries also need to be maintained, requiring water replacement to avoid structural damage; if they aren’t maintained properly, their life span is shortened even further. Because lithium batteries require no active maintenance, a one-time purchase guarantees longevity. Lithium is Quick & Efficient Lithium can charge and discharge at a high rate providing maximum versatility for all types of applications. Fast charging minimizes downtime, and lithium’s high rate of discharge is perfect for a burst of power. Lead-acid batteries must be charged in stages over a longer time, and they perform inefficiently during high discharge periods, making them less versatile than their lithium counterparts. Lithium’s efficiency is unparalleled, especially under high-stress situations. Unlike lead-acid, temperature fluctuations and energy depletion barely affect lithium’s power delivery. Lithium is the logical choice for applications that will exhaust the batteries or run in extreme weather. Lithium is the Lightweight Champ LiFePO4 batteries provide more energy than lead-acid batteries and are typically half the mass, reducing concerns about battery weight. Compared to other battery chemistries, lithium provides the same or greater energy at less than half the weight and size. This means more flexibility and easier installation! Charger Parameters Applying Battery Type: Lifepo4 Input Voltage (AC/V): 100 to240V Output Current (A): 5A Output Voltage (DC/V): 58.40V Charging Mode: CC/CV Type of DC Output Connector: PLUG Applications: E-Bike, Electric Bike, E-Scooter, Electric Scooter ! (Suitable Wattage of Motor: from 250 Watt to 2200 Watt suggested.) 1. Cells -A grade cellsto make sure batteries inhigh and full capacity 2. Protection -Dual IC chips, that can anti-short circuit, anti-over charger, anti-over current, anti-overload 3. Compose Type : Injection Technology tomake battery more stable. 4. Certifications : CE,UL,FCC, RoHS, ISO9001 5. Long life cycle, No memory, environment friendly. Our BMS consists of Master BMS Circuitry (we named “BMU”), Slave BMS Circuitry (we integrate it into our battery module) and contactor. Besides the basic functions such as over charge/ discharge,over current, short circuit, over temperature and balancing, Our BMS owns the following features, 1. Master-Slave architecture makes the system flexible; 2. Two level warning makes maintenance easier; 3. CAN2.0 and industrial level electronic components make system reliable; 4. Contactor makes high rate charge & discharge feasible; 5. Periodic insulation measurement makes personnel safety possible; 6. Host can control the system easily; 1. High energy density 2. High working voltage for single battery cells 3. Pollution-free, environment friendly 4. Long cycle life; It extends its cycle life up to 800 cycles 5. Capacity, resistance, Voltage, platform time consistency is good 6. Simplifying battery management system (BMS) and a battery charger 7. With short-circuit production function, safe and reliable 8. Factory price & High quality 9. Fast charging 10. Light weight, small size 11. Large overcharge tolerance and safe performance 12. Self balance 51.2V 40AH 2200w Lifepo4Battery with PVC Case,40ABMS and 58.40V Charger: Parts included: 1. 51.2V 40AH 2200Wlifepo4 Battery with PVCcase 2. 40ABuilt-in BMS board 3. Charger (58.4V 5A 100-240V 50/60HZ US,EU,UK,AU PLUG) This battery can fit these motor kits and so on 48V 350W BAFANG Brushless Geared Mid-Drive Motor eBike Conversion Kits 48V 500W BAFANG Brushless Geared Mid-Drive Motor eBike Conversion Kits 48V 750W BAFANG BBS02 Brushless Geared Mid-Drive Motor eBike Conversion Kits 48V 1000W BAFANG BBSDH Brushless Geared Mid-Drive Motor eBike Conversion Kits TONGSHENG TSDZ2 48V 500W Brushless Geared Mid-Drive Motor eBike Conversion Kits TONGSHENG TSDZ2 48V 350W Brushless Geared Mid-Drive Motor eBike Conversion Kits You can choose battery discharge port : A ,B,C,D 1.Light electricvehicles: such as electric bicycle, golf car, small-scale electric flat car, forklift, cleanness car, electric wheelchairs 2. Large-scale electric vehicles: such as bus, electric car, tourist car and commix car 3. Electric tool: electric drill, electric saw, lawn mower 4. Remote control cars, boat, aircraft, toys, 5. Solar and wind power generation energy storage devices 6. UPS emergency lights, warning lights and miners lamp 8. Small medical equipment and portable equipment experience We have more than 10years experience in producing Nicd&NiMH&Lithiumbattery cell and pack,7years of experience to manufacture Lithum ionbattery,thefactorypassedISO 9001:2008 certification. Strict process management and control Each process for making battery wereunder strict managementand control,all of the battery wereunder full inspection before delivery. After-sales service Support prompt shipment and sample quality products,track the cargo in time after delivery.Morethanone year Guarantee,there are safety and operating instructions for your reference. Quickresponsetoclients'enquirieswithin12hrs •Tailor-madesolutionprovidedbyourexperiencedteamandprofessionalengineers for lithium polymer battery •Morethan10yearsexperienceinproducingbatteryproductsforvariousapplication. •Valuequalityandlong-termcooperationtoreachwin-winrelationship.
