Battery Management System 10S 36V 100A 120A Lithium Or Li-ion Battery Protection Board

856685-601 856685-001 448.08E01.0011 w R5M1-30 2GB GPU i5-6200U CPU for HP Notebook 17-X Series Laptop PC Motherboard tested KEFU LA-B012P For Dell Inspiron 5447 5547 5442 laptop motherboard LA-B012P REV:1.0 I7-4500U/I7-4510U motherboard Test work For Gigabyte GA-Z68XP-UD4-B3 Original Used Desktop Motherboard Z68XP-UD4-B3 Z68 LGA 1155DDR3 32G SATA3 TP401CA Laptop Motherboard For ASUS VivoBook Flip 14 TP401CA TP401C TP401CA7Y30 Mainboard 128GB SSD i7-7Y75 8GB RAM AIZS3 LA-C582P for Lenovo ThinkPad YOGA260 YOGA 260 laptop motherboard FRU 00NY985 CPU i5-6300U 4GB RAM 100% test work SHELI For DELL Inspiron 5567 5767 Laptop Motherboard I5-7200U CPU LA-D802P CN-0DG5G3 0DG5G3 DG5G3 G22RW Tested 100% work FOR ACER V3-771G Laptop Motherboard NBM0S11001 NB.M0S11.001 GT650M/2GB VA70/VG70 REV2.1 DDR3 HM77 100% Tested Fast Ship KEFU LA-B111P Laptop motherboard for Lenovo Y70-70 17-inch original mainboard I7-4720HQ/4710HQ GTX960M-4GB 661-6588 Logic Board with CPU i5 2.5GHz For 13.3" MacBook Pro A1278 MD101 2012 Year 820-3115-B For Asus Maximus V Gene Desktop Motherboard LGA 1155 DDR3 32GB USB3.0 for 22/32nm CPU Z77 motherboard Lenovo Thinkpad E460 i5-6200U Laptop integrated graphics card motherboard FRU:00UP248 00UP247 ASUS SaberTooth X58 original motherboard LGA 1366 DDR3 for Core i7 Extreme/Core i7 24GB X58 Desktop motherboard Free shipping HUANANZHI X79 motherboard LGA2011 ATX combos E5 2689 CPU 2pcs x 8GB = 16GB DDR3 RAM 1600Mhz PC3 12800R PCI-E NVME M.2 SSD For ASUS H97M-PLUS original motherboard Socket LGA 1150 DDR3 H97 SATA3 USB3.0 Desktop Motherboard For ASUS Maximus VI Impact original motherboard Socket LGA 1150 DDR3 Z87 MIN-ITX ITX HTPC Motherboard Original For MSI CR40 GE40 Laptop Motherboard MS-14921 N14E-GL-A1 GTX760M 2GB GPU PGA947 MainBoard 100% Tested Fast Ship Lenovo Thinkpad E550 E550C Laptop integrated graphics card motherboard FRU 00HT637 Original Used Desktop Motherboard Gigabyte H110TN-E H110 LGA 1151 Core i7/i5/i3/Pentium/Celeron DDR4 32G SATA3 Mini-ITX ASUS ROG STRIX Z370-F GAMING Z370 Game Board Support I7 8700K used 90%new HUNNANZHI X99-AD3 X99 ATX USB3.0 SATA3 PCI-E SSD M.2 128G Four Channels support REG ECC memory and Xeon E5 V3 V4 CPU LGA 2011-3 ThinkPad E560 i5-6200U Laptop integrated graphics card motherboard FRU 01AW104 01HY627 01AW105 01HY628 original motherboard ASUS Maximus V Gene DDR3 LGA 1155 USB2.0 USB3.0 32GB for 22/32nm CPU Z77 Desktop motherboard Free shipping New Asrock Z370 PRO4 Motherboard DDR4 64G Z370 DVI HDMI VGA USB2.0 3.1 For ASUS PRIME B450-PLUS Used original motherboard Socket AM4 DDR4 B450 Desktop Motherboard Asus PRIME A320M-E Desktop Motherboard AMD A320 Socket AM4 DDR4 32GB SATA3 USB3.0 M.2 HDMI VGA Micro ATX Original Used Mainboard A1974482A A1974483A DA0FI1MB8D0 Main board Fit For SONY Vaio SVF13 SVF13N SVF13NA1UL Laptop Motherboard SR170 i5-4200U CPU Gigabyte GA-965P-DS4 Desktop Motherboard P965 LGA 775 DDR2 SATA 8G USB2.0 ATX Original Used Mainboard Gigabyte GA-B250-FinTech Desktop Motherboard B250-FinTech B250 Socket LGA 1151 Core i7 DDR4 64G ATX Original Used Mainboard For ASUS ROG MAXIMUS VIII FORMULA original motherboard Socket LGA1151 DDR4 Z170 Desktop Motherboard Original Used Desktop Motherboard Intel Z97 Asus MAXIMUS VII IMPACT Socket LGA 1150 Core i7/i5/i3/Pentium/Celeron DDR3 Mini-ITX Original Used Desktop Motherboard Intel Z68 Asus M4E Maximus IV Extreme -Z Socket LGA 1155 Core i7/Core i5/Core i3 DDR3 32G EATX HUANANZHI X79-8D CPU LGA2011 LGA 2011 motherboard with dual processor DDR3 Suitable for server memory and server CPU E-ATX DA0ZRTMB6D0 motherboard for ACER E5-573 E5-573G notebook motherboard CPU i5 4210U GT920M 2G DDR3 100% test work DA0ZRTMB6D0 motherboard for ACER E5-573 E5-573G notebook motherboard CPU i5 4210U GT920M 2G DDR3 100% test work Kllisre X79 motherboard set with Xeon E5 2689 4x4GB=16GB 1600MHz DDR3 4GB ECC REG memory ATX USB3.0 SATA3 PCI-E NVME M.2 SSD LA-9982P Laptop motherboard for Dell Inspiron 15R-5537 3537 original mainboard I7-4500U 2GB graphics card Z5WAH LA-B162P NBMLC11004 NB.MLC11.004 Mainboard For acer aspire E1-572 E1-572G E5-571 E5-571G motherboard I3-4030U CPU 820M LA-9981P Laptop motherboard for Dell Inspiron 15R-3537 5537 original mainboard I7-4500U HD8670M

Type Lithium Battery

Voltage 36v

Capacity > 40Ah

item type 36V 10S programable BMS

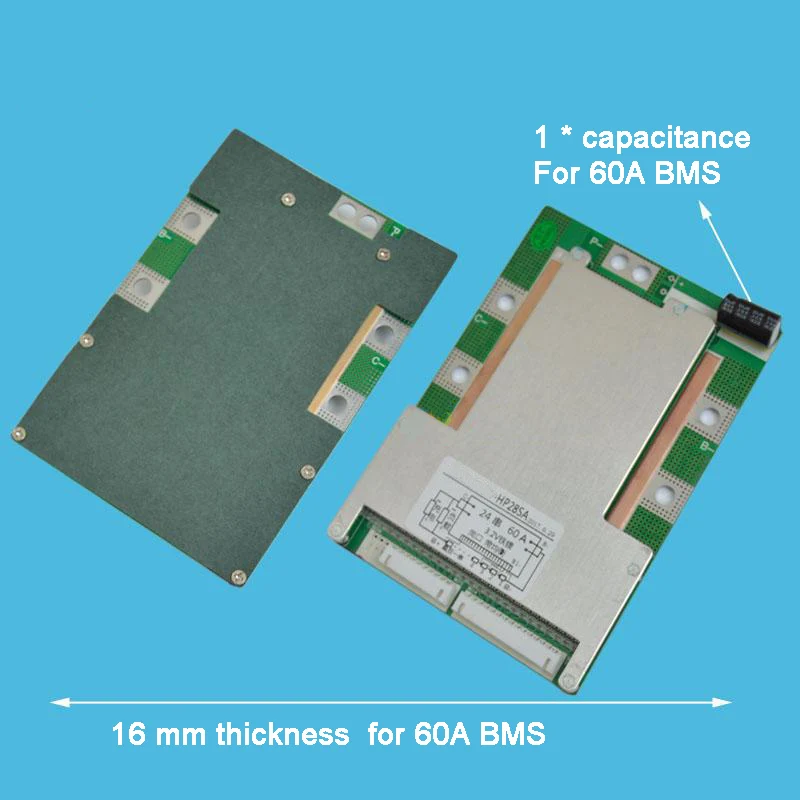

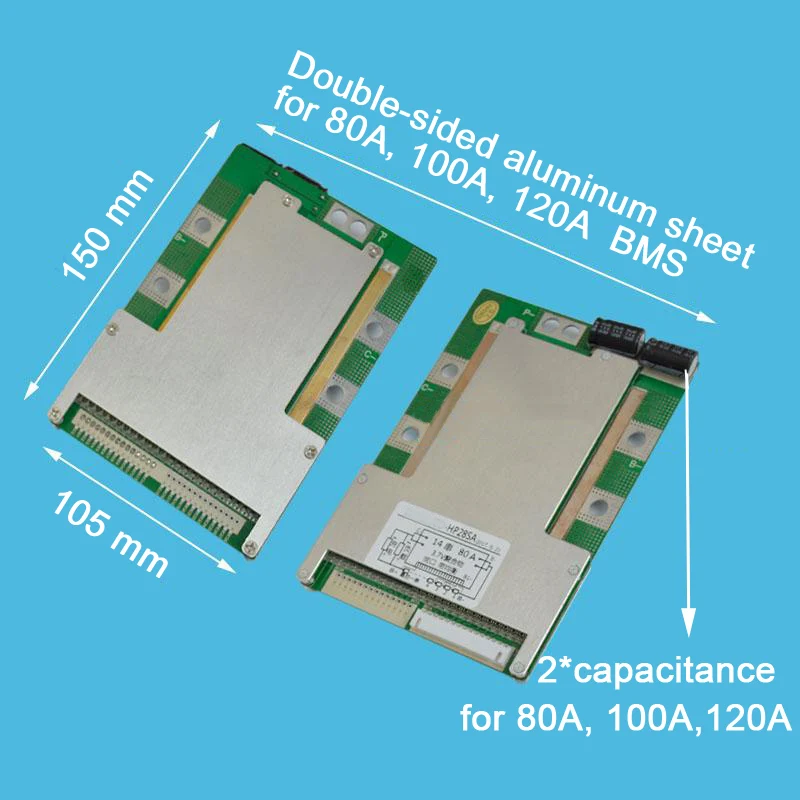

Size 150*105*23 (mm)

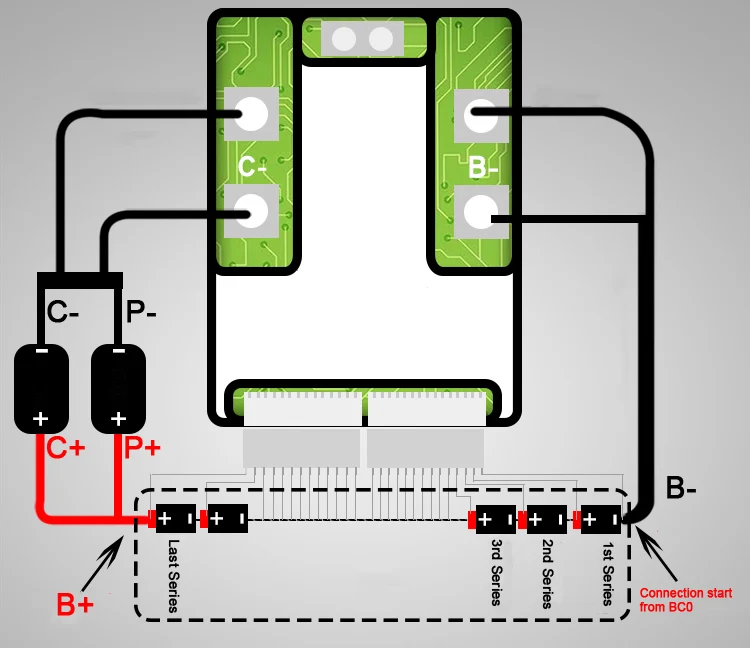

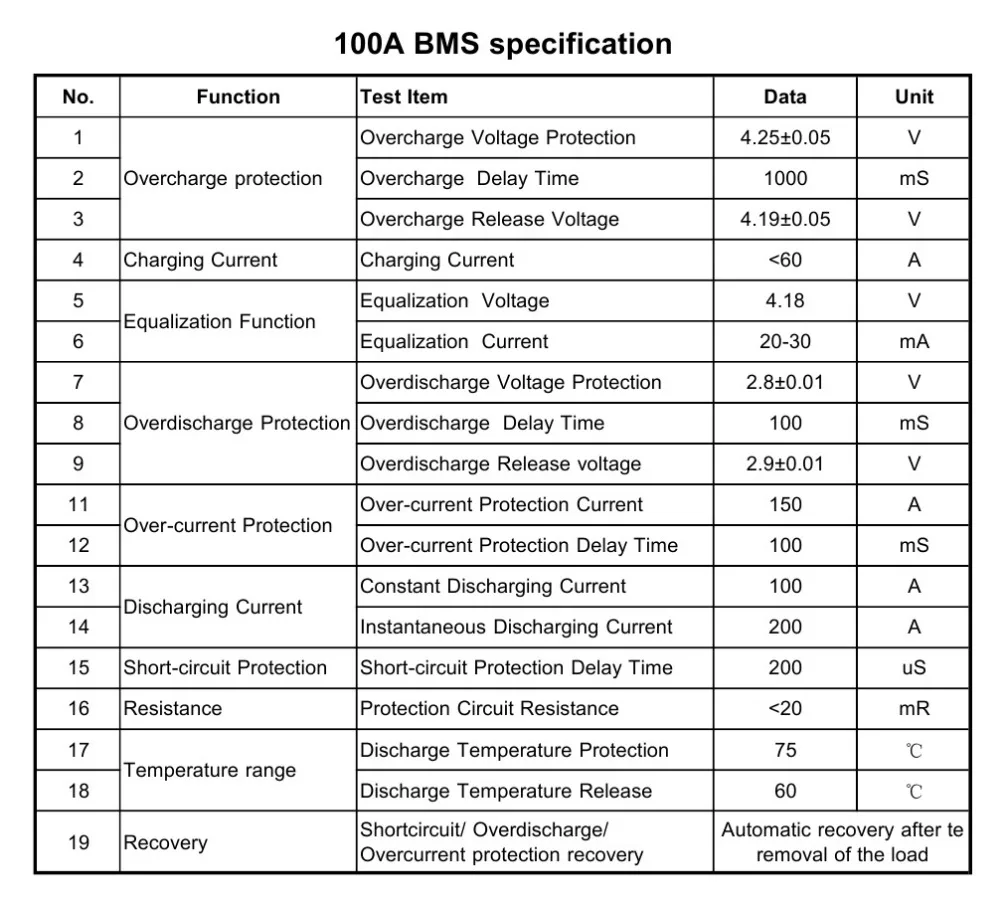

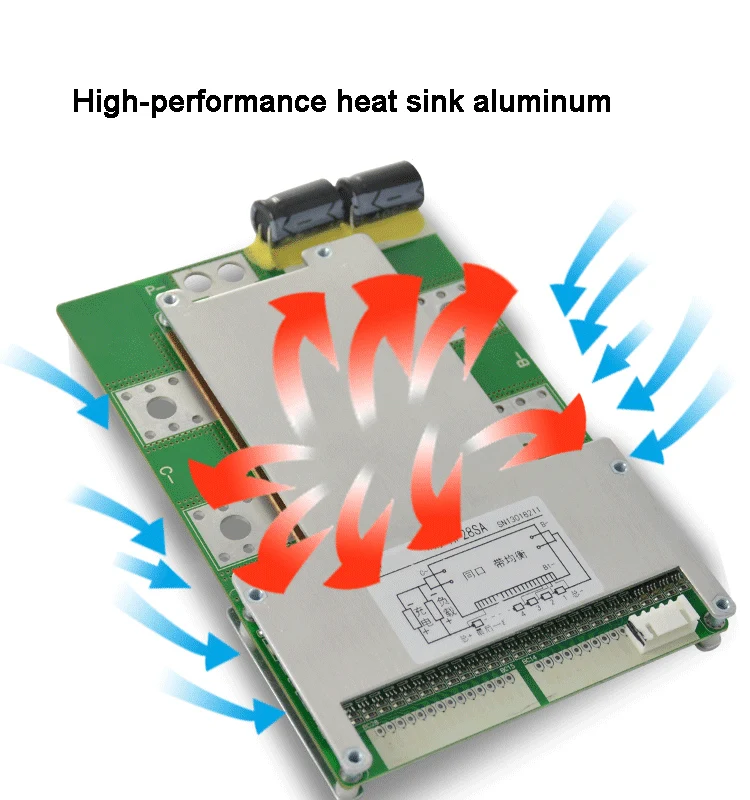

OVERVIEW The protection board is for 10 series-36V lithium batteries, it can be used for ternary lithium batteries, manganese acid lithium batteries, cobalt acid lithium batteries. Stable various protective functions for charging and discharging, such as accurate overcharge protection, over-discharge protection, overcurrent protection, and short circuit protection. Batteries core hardware smart balanced processing, properly balanced current, reasonably balanced heat emitting, improve the performance of battery pack. 36V 10S 100A BMS Function and Specification 1). detection and protection of over-charge,over-discharge. 2). detection short-circuit of charging port, with two layers protection against over-voltage when charging. 3). voltage balancing. 4). detection of wires disconnection. 5). high-temperature protection. Kindly remind! 1. before installing the protection board, the battery cells must be matched well (each the voltage difference between each cell is smaller than 0.05V, internal resistance difference is not more than 5mΩ, the capacity difference is less than 30mAh). The better of the battery cells consistency, thelongerrunning distance. 2. The battery should be connected in parallel first and then connected in series to ensure the welding is correct. Please use the nickel strip to weld the18650 battery cells, other batteries with solder. Do not use screws for the battery cells connection or it may burns out the protection board IC.
